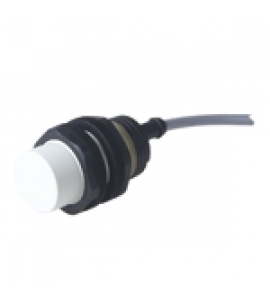

ICB30S30F15NC

Inductive proximity sensor, M30 Nickel-Plated Brass, 2m cable, Sn 15mm, Flush mount, Short body, NPN NC output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1 kHz, Operating temperature -25C - +70C, IP67

• Sensing distance: 15 to 22 mm

• Flush or non-flush types

• Short or long body versions

• Rated operational voltage (Ub): 10 - 36 VDC

• Output: DC 200 mA, NPN or PNP

• Normally open or Normally closed

• LED indication for output ON, short-circuit and overload

• Protection: reverse polarity, short circuit, transients

• Cable or M12 plug versions

• According to IEC 60947-5-2

• Laser engraved on front cap, permanently
