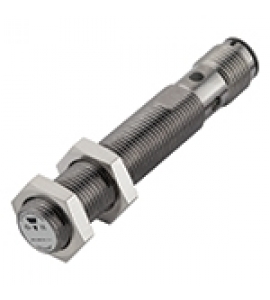

| Inductive proximity sensor, M12 Stainless steel, M12 plug, Sn 4mm, Flush mount, NPN NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -40C - +80C, IP67, IP68, IP69K, Ecolab |
Sensing distance: 2 to 8 mm
• Flush or non-flush mountable
• Long body version
• Rated operational voltage (Ub): 10 - 36 VDC
• Output: DC 200 mA, NPN or PNP
• Normally open or normally closed
• 4 x 90° LED indication for output ON, short-circuit and overload
ashdown resistant • Ecolab certified, FDA-certified plastic
• Laser engraved on the housing, permanently legible
• Extended temperature range: -40°C...+80°C
• CSA certified for Hazardous Locations
